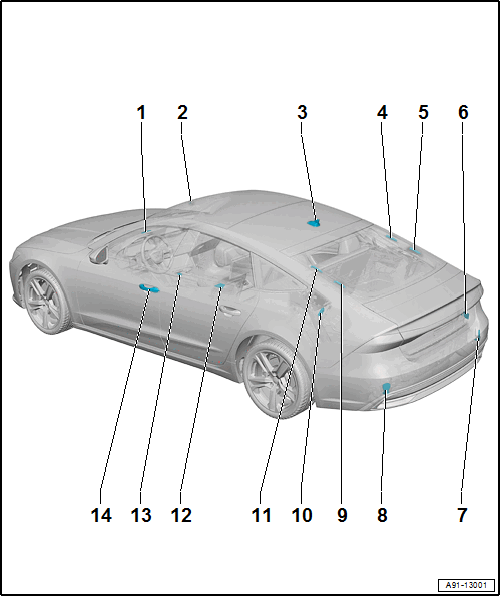

Component Location Overview - Antenna Systems, A6 Sedan, A7 SPORTBACK, Through My 2020
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- LTE Antenna 2 -R306-
- EL3 and IV1 through IV8
- Vehicle Interior Communication Antenna -R364-
- Removing and Installing. Refer to Vehicle Interior Communication Antenna -R364-, REMOVING AND INSTALLING .
- Roof Antenna -R216-
- Depending on vehicle equipment with the following integrated components:
- GPS Antenna -R50-
- Satellite Tuner Antenna -R172-, ER3 and QV3
- Auxiliary Heater Antenna -R182-, ER1/ER2/EZ1 and 9M9
- LTE Antenna 1 -R297-, EL3 and IW0/IV0
- Emergency Call Module Antenna 2 -R322-, IW1/IW3/IW5/IV1 through IV8
- LTE Antenna 3 -R330-, 9ZE and EL0/IW0/IV0
- Roof Antenna Control Module -JX3-, FT1/FT2
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Depending on vehicle equipment with the following integrated components:
- Antenna Amplifier -R24-
- Removing and Installing, A6 Sedan. Refer to ANTENNA AMPLIFIERS -R24- / -R111- / -R83- / -R84-, REMOVING AND INSTALLING, A6 SEDAN
- Removing and Installing, A7 Sportback. Refer to the appropriate service information .
- TV Antenna Amplifier 2 -R83-
- Removing and Installing, A6 Sedan. Refer to ANTENNA AMPLIFIERS -R24- / -R111- / -R83- / -R84-, REMOVING AND INSTALLING, A6 SEDAN
- Removing and Installing, A7 Sportback. Refer to the appropriate service information .
- Emergency Call Module Antenna -R263-
- Removing and Installing. Refer to OUTSIDE RIGHT BUMPER ANTENNA, REMOVING AND INSTALLING .
- LTE Antenna 2 -R306-
- EL3 and IV0
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
- LTE Antenna 1 -R297-
- EL3 and IV1 through IV8
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
- LTE Antenna 3 -R330-
- 9ZE and EL3/IW1/IW3/IW5/IV1 through IV8
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
- TV Antenna Amplifier 3 -R84-
- Removing and Installing, A6 Sedan. Refer to ANTENNA AMPLIFIERS -R24- / -R111- / -R83- / -R84-, REMOVING AND INSTALLING, A6 SEDAN
- Removing and Installing, A7 Sportback. Refer to the appropriate service information .
- Windshield Antenna Suppression Filter -C18-
- Removing and Installing, A6 Sedan. Refer to WINDSHIELD ANTENNA SUPPRESSION FILTER, REMOVING AND INSTALLING, A6 SEDAN
- Removing and Installing, A7 Sportback. Refer to the appropriate service information .
- Antenna Amplifier 2 -R111-
- Removing and Installing, A6 Sedan. Refer to ANTENNA AMPLIFIERS -R24- / -R111- / -R83- / -R84-, REMOVING AND INSTALLING, A6 SEDAN
- Removing and Installing, A7 Sportback. Refer to the appropriate service information .
- Near Field Communication Antenna 2 -R351-
- Removing and Installing. Refer to Near Field Communication Antenna 2 -R351-, REMOVING AND INSTALLING .
- Near Field Communication Control Module 2 -J1170-
- Removing and Installing. Refer to Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING .
- Near Field Communication Antenna -R350-
- RHD: arranged in a mirror image
- Removing and Installing. Refer to Near Field Communication Antenna -R350-, REMOVING AND INSTALLING .
