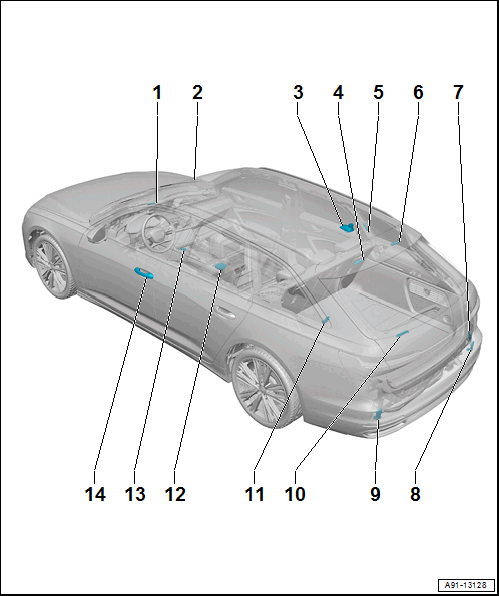

Component Location Overview - Antenna Systems, A6 AVANT, From My 2021
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Near Field Communication Antenna -R269-
- Removing and Installing. Refer to NEAR FIELD COMMUNICATION ANTENNA, REMOVING AND INSTALLING .
- Wireless Data Transmission Antenna 2 -R366-
- Removing and Installing. Refer to Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING .
- Roof Antenna -R216-
- Depending on vehicle equipment with the following integrated components:
- GPS Antenna -R50-
- Bluetooth Antenna -R152-, 9ZE/9ZV/9ZX
- Satellite Tuner Antenna -R172-, ER3 and QV3
- Auxiliary Heater Antenna -R182-, ER1/ER2/EZ1 and 9M9
- Emergency Call Module Antenna 2 -R322-, IV1 through IV8/JE0 through JE6
- Roof Antenna Control Module -JX3-, FT1/FT2
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Depending on vehicle equipment with the following integrated components:
- Antenna Amplifier 2 -R111-
- Removing and Installing. Refer to Antenna Amplifier -R24- /Antenna Amplifier 2 -R111- /TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING, A6 AVANT .
- Antenna Amplifier 3 -R112-
- Removing and Installing. Refer to Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING, A6 AVANT .
- Antenna Amplifier -R24-
- Removing and Installing. Refer to Antenna Amplifier -R24- /Antenna Amplifier 2 -R111- /TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING, A6 AVANT .
- Emergency Call Module Antenna 3 -R323-
- Removing and Installing. Refer to OUTSIDE RIGHT BUMPER ANTENNA, REMOVING AND INSTALLING .
- Emergency Call Module Antenna -R263-
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
- LTE Antenna 3 -R330-
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
- TV Antenna Amplifier 3 -R84-
- Removing and Installing. Refer to Antenna Amplifier -R24- /Antenna Amplifier 2 -R111- /TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING, A6 AVANT .
- Windshield Antenna Suppression Filter -C18-
- Removing and Installing. Refer to WINDSHIELD ANTENNA SUPPRESSION FILTER, REMOVING AND INSTALLING, A6 AVANT .
- Near Field Communication Antenna 2 -R351-
- Removing and Installing. Refer to Near Field Communication Antenna 2 -R351-, REMOVING AND INSTALLING .
- Near Field Communication Control Module 2 -J1170-
- Removing and Installing. Refer to Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING .
- Near Field Communication Antenna -R350-
- RHD: arranged in a mirror image
- Removing and Installing. Refer to Near Field Communication Antenna -R350-, REMOVING AND INSTALLING .
