Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING, A6 AVANT: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the right C-pillar trim panel. Refer to the appropriate service information .

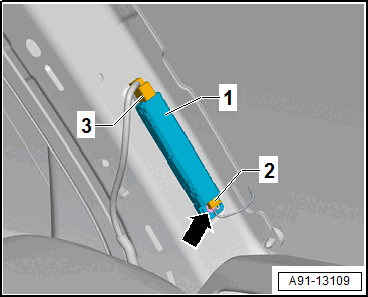

-- Release and disconnect the connectors -2 and 3- from the Antenna Amplifier 3 -R112- -1-.
-- Loosen the screw -arrow- several turns and remove the Antenna Amplifier 3 -R112- -1- from the C-pillar.
