Antenna Amplifier -R24- /Antenna Amplifier 2 -R111- /TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING, A6 AVANT: Notes

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

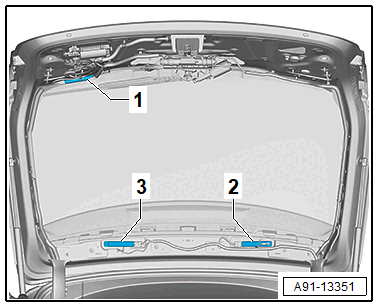

The antenna amplifiers are located in the rear lid.

Courtesy of AUDI OF AMERICA, LLC

-1- TV Antenna Amplifier 3 -R84-
-2- Antenna Amplifier -R24-
-3- Antenna Amplifier 2 -R111-

Removing and installing is identical.
