Warning Label, Checking, AUDI A6/A7
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

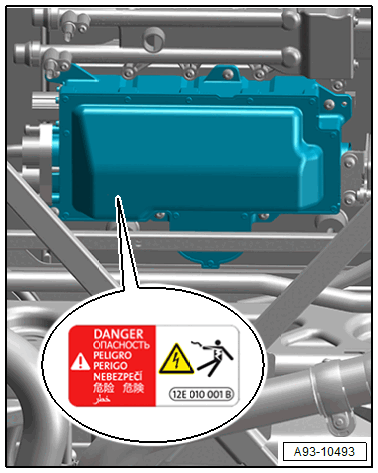

A warning label is located on all high-voltage components.
For maintenance work pay attention that this warning label is not damaged or dirty and all high-voltage components are present.
Replace if necessary.
Warning labels are on the following assembly groups:

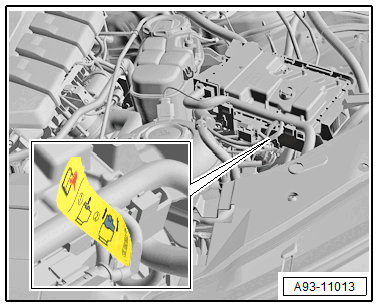

- Emergency instruction in the left side of the engine/motor compartment

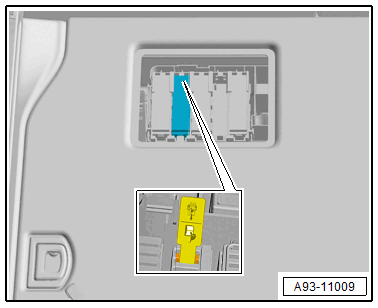

- Emergency instruction in the vehicle interior under the service cover in the luggage compartment floor

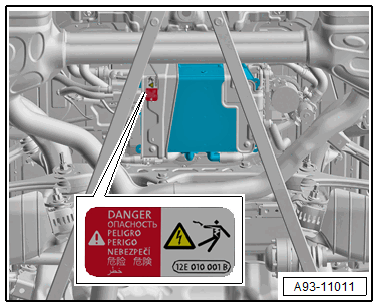

- Electric Drive Power and Control Electronics -JX1- - Bottom and Top
- Electrical A/C Compressor -V470-

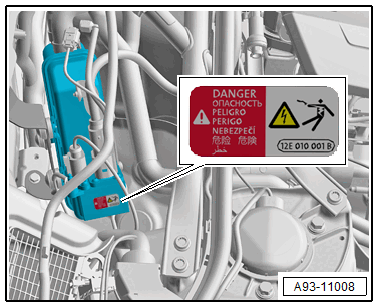

- High-Voltage Heater (PTC) -Z115-

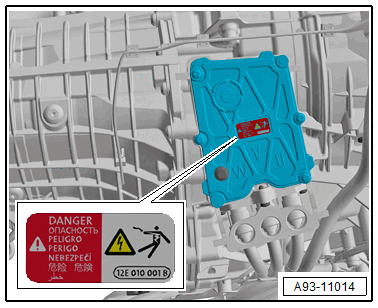

- Three-Phase Current Drive -VX54- - Top

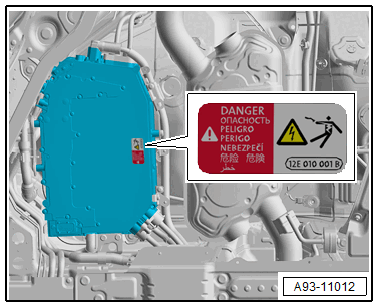

- High-Voltage Battery Charger 1 -AX4- - Side and Top
- High-Voltage Battery Control Module -SX6-

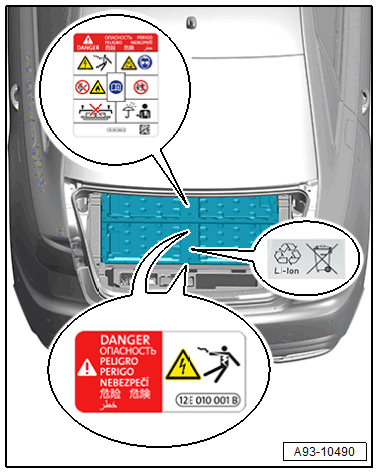

- Hybrid Battery Unit -AX1-

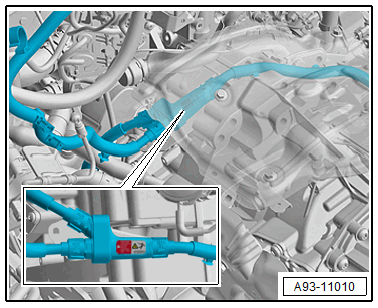

- Cable distributor
