Potential Equalization Cable, Removing And Installing, Electric Drive Power And Control Electronics, AUDI A6/A7: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
There is a risk of fatal injury due to high voltage.
Electrocution by direct contact or electric arc can cause severe bodily injury or fatal injury.
- Have an Audi high-voltage technician (HVT) or an Audi high-voltage expert (HVE) de-energize the high-voltage system.
-- De-energize the high-voltage system. Refer to HIGH-VOLTAGE SYSTEM, DE-ENERGIZING .
-- Remove the left center underbody trim panel. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

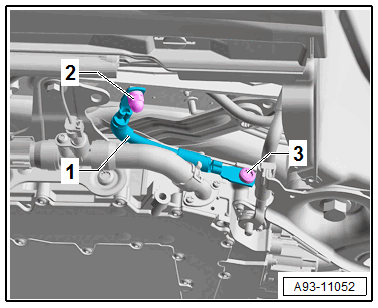

-- Remove the nut -2-.
-- Remove the bolt -3-.
-- Free up and remove the potential equalization cable -1-.
