Component Location Overview - Potential Equalization Cables, AUDI A6/A7
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

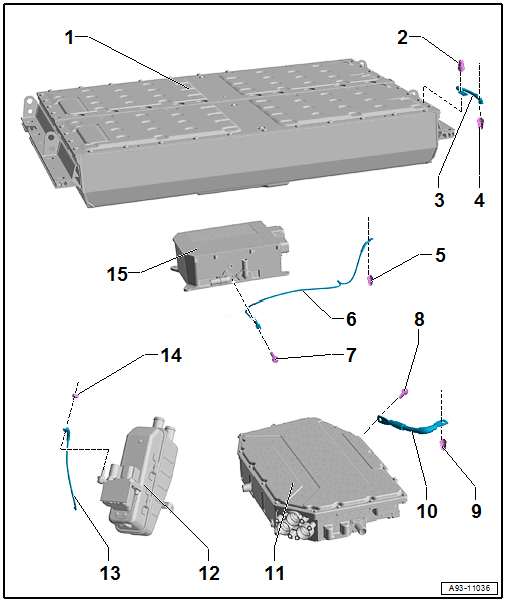

- Hybrid Battery Unit -AX1-
- Nut
- 9 Nm
- Potential Equalization Cable
- For hybrid battery unit
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, Hybrid Battery Unit -AX1-, AUDI A6/A7 .
- Nut
- 9 Nm
- Nut
- 9 Nm
- Potential Equalization Cable
- For the High-Voltage Battery Charger 1
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, High-Voltage Battery Charger 1 -AX4-, AUDI A6/A7 .
- Bolt
- 9 Nm
- Bolt
- 20 Nm
- Nut
- 20 Nm
- Potential Equalization Cable
- For electric drive power and control electronics
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, AUDI A6/A7 .
- Electric Drive Power and Control Electronics -JX1-
- High-Voltage Heater (PTC) -Z115-
- Potential Equalization Cable
- For high-voltage heater (PTC)
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, HIGH-VOLTAGE HEATER (PTC), AUDI A6/A7 .
- Nut
- 9 Nm
- High-Voltage Battery Charger 1 -AX4-
- With High-Voltage Battery Charger Control Module -J1050-
