Engine Sound Generator Control Module -J943-, REMOVING AND INSTALLING, AUDI A6/A7: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

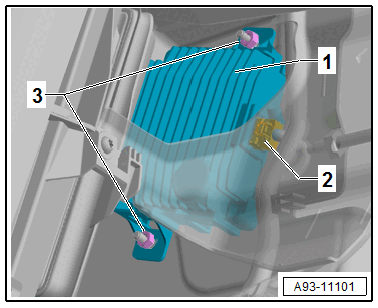

-- Remove the nuts -3- on the bracket from the Engine Sound Generator Control Module -J943- -1-.
-- Remove the bracket with the Engine Sound Generator Control Module -J943- -1- from the threaded pin and release and remove the connector -2-.

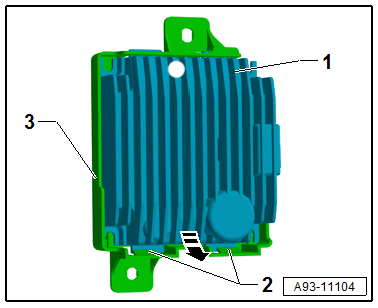

-- Loosen the locking tabs -2- on the bracket -3-.
-- Remove the Engine Sound Generator Control Module -J943- -1- from the bracket -3- in the -direction of the arrow-.
