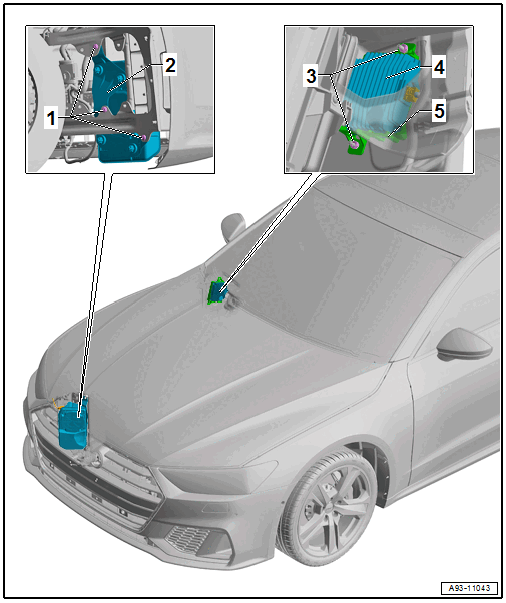

Component Location Overview - Driving Sound/Engine Sound, AUDI A6/A7
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolts
- Quantity: 3
- 8 Nm
- Engine Sound Generator Actuator 1 -R257-
- Removing and Installing. Refer to Engine Sound Generator Actuator 1 -R257-, REMOVING AND INSTALLING, AUDI A6/A7 .
- Nut
- Quantity: 2
- 3.5 Nm
- Engine Sound Generator Control Module -J943-
- Removing and Installing. Refer to Engine Sound Generator Control Module -J943-, REMOVING AND INSTALLING, AUDI A6/A7 .
- Bracket
