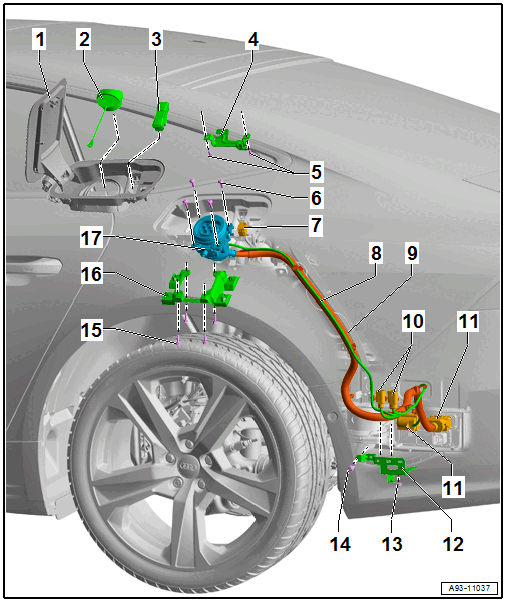

Overview - Charging Socket, AUDI A6/A7
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Electrical Connection Charge Door Unit
- Removing and Installing. Refer to Fuel Filler Door Unit
- Charging Socket Cap
- Battery Charging Button Module -EX32-
- With Charging Socket 1 LED Module -L263-, Immediate Charging Button -E766-, Charging Profile Selection Button -E808-
- Removing and Installing. Refer to Battery Charging Button Module -EX32-, REMOVING AND INSTALLING, AUDI A6/A7 .
- Release Cable Counterholder
- Bolt
- Quantity: 2
- 3 Nm
- Bolt
- Quantity: 4
- 8 Nm
- Connector
- For the Battery Charging Button Module -EX32-
- Wire
- High-Voltage Cable
- To the High-Voltage Battery Charger 1 -AX4-
- Connectors
- For the passenger compartment
- Connectors
- To the High-Voltage Battery Charger 1 -AX4-
- Bracket
- Nut
- 8 Nm
- Bolt
- 8 Nm
- Bolt
- Quantity: 4
- 8 Nm
- Mount
- For the High-Voltage Battery Charging Socket 1 -UX4-
- High-Voltage Battery Charging Socket 1 -UX4-
- With High-Voltage Charging Connector Lock 1 Adjuster -F498- and Charging Socket Temperature Sensor 1 -G853-
- Removing and Installing. Refer to High-Voltage Battery Charging Socket 1 -UX4-, REMOVING AND INSTALLING, AUDI A6/A7 [DMTA, DPAA, DPUA, DPVA, DMTC, DRYA, DUVA] .
