Cover And Cushion, Removing And Installing, Q3 Backrest Cushion: Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seats all the way forward.

-- Position the rear seat all the way toward the rear.

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the headrest guides. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .

-- Remove the seat cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 SEAT CUSHION .

-- Move the rear seat into the most forward position and fold the backrest forward.

Left Rear Seat:

-- Remove the rear seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

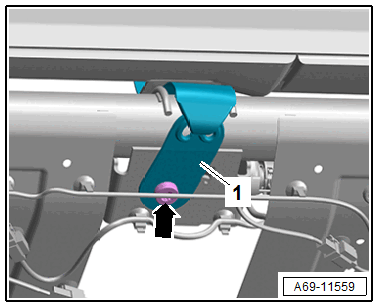

-- Remove the bolt -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the belt end fitting -1- on the seat frame.

-- Remove the lower center cushion. Refer to LOWER CENTER CUSHION, REMOVING AND INSTALLING, Q3 .

-- Fold the pass-through forward.

-- Unclip the cover -1- using the Trim Removal Wedge: 3409 on the backrest frame in direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the rear cover on the backrest frame in direction of -arrow B- and remove.

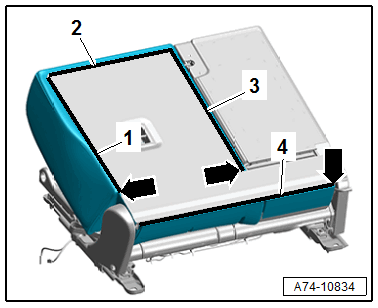

-- Use a flat-head screwdriver to pry out the clamping strips -1, 2, 3 and 4- for the cover from the backrest frame starting at the corners -arrows- and remove all around.

Courtesy of AUDI OF AMERICA, LLC

-- Equipped on some models: remove the thorax airbag. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

TIP:

Equipment versions with a thorax airbag can be identified by the "Airbag" name badge in the cover.

-- Fold the rear seat backrest toward the rear.

-- Loosen the cover with the cushion from the backrest frame and remove them.

Right Rear Seat:

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the side cover -2- at the bottom of the rear seat backrest using the Pry Lever: 80-200 -arrow-.

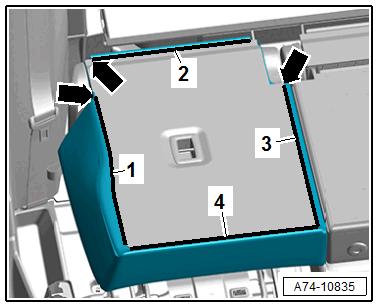

-- Use a flat-head screwdriver to pry out the clamping strips -1, 2, 3 and 4- for the cover from the backrest frame starting at the corners -arrows- and remove all around.

Courtesy of AUDI OF AMERICA, LLC

-- Equipped on some models: remove the thorax airbag. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

TIP:

Equipment versions with a thorax airbag can be identified by the "Airbag" name badge in the cover.

-- Fold the rear seat backrest toward the rear.

-- Loosen the cover with the cushion from the backrest frame and remove them.
