Cover And Cushion, Removing And Installing, A3 Backrest Cushion: Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Place the rear seat backrest on a clean surface.

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the inner mounting pin. Refer to INNER MOUNTING PIN, REMOVING AND INSTALLING .

-- Remove the locking mechanism trim. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .

-- Use a flat-head screwdriver to pry the clamping strips -1 and 2- for the cover out of the locking mechanism -3-.

GWWA72-11591Courtesy of AUDI OF AMERICA, LLC

Right Rear Seat Backrest:

-- Remove the rear seat belt guide in the center. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .

-- Equipped on some models: remove the backrest with pass-through. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING .

Continuation:

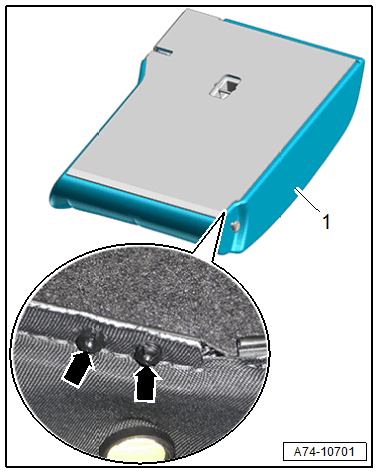

GWWA74-10701Courtesy of AUDI OF AMERICA, LLC

-- Use the Trim Removal Wedge: 3409  to unclip the cover clips -arrows- from the backrest frame near the inner mounting pin.

-- Unclip the outer bearing sleeve -1- from the rear seat backrest with the Wedge Set: T10383/1  in direction of -arrow-.

GWWA74-10481Courtesy of AUDI OF AMERICA, LLC

-- Starting at the locking mechanism, pry off the clamping strip -2- for the cover from the backrest frame using a flat-head screwdriver -3- in direction of -arrow-.

Fig 1: Prying Off Clamping Strip -2- For Backrest Cover Using A Screwdriver All Around Backrest Frame -3- -Arrow-
GWWA74-10419Courtesy of AUDI OF AMERICA, LLC

-- Move the cover and cushion -1- as far upward as possible until the headrest tube is visible with the headrest guide.

-- Push the tabs for the headrest guide -2- inward -arrows- using pliers, and at the same time, remove the headrest guide from the backrest frame -3-.

GWWA72-11592Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest cover -1- and backrest cushion from the backrest frame.
