Overview - Head Curtain Airbag

WARNING: This page is about a different car, the 2024 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The Avant is shown.

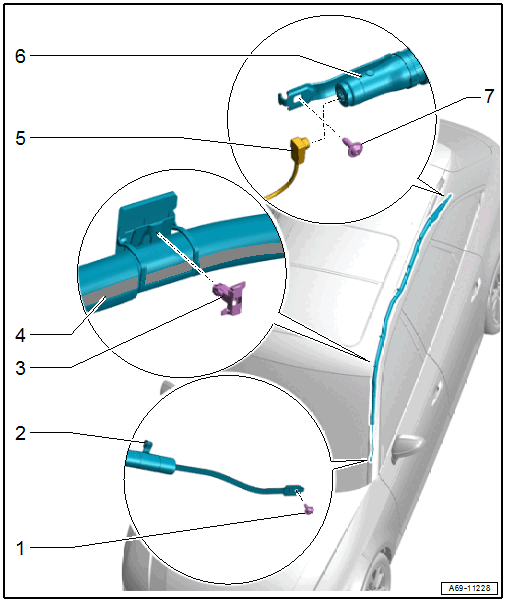

Fig 1: Exploded View Of Head Curtain Airbag

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Replace after removing
- 5 Nm
Clip
- Quantity: 2
Clip
- Available only with -item ) Head Curtain Airbag-
- Remove with Clip Pliers :VAS 211 001
Colored Strip
- Serves as anti-rotation protector
- must be visible after assembly.
Connector
- For
  - Driver Head Curtain Airbag Igniter -N251-
  - Front Passenger Head Curtain Airbag Igniter -N252-
Head Curtain Airbag
- with
  - Driver Head Curtain Airbag Igniter -N251-
  - Front Passenger Head Curtain Airbag Igniter -N252-
  WARNING:
  Risk of injury due to involuntary deployment.
  - Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Bolt
- Replace after removing
- 5 Nm
