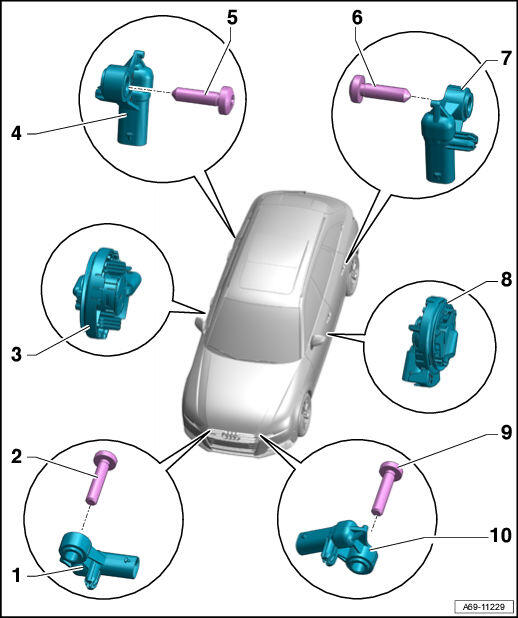

Component Location Overview - Airbag Crash Sensors
WARNING: This page is about a different car, the 2024 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.
- Passenger Side Front Airbag Crash Sensor -G284-
- Component location: on the lock carrier
- Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- Safety Precautions. Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and installing. Refer to DRIVER THORAX AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER THORAX AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Component location: behind the sill panel strip
- Removing and installing. Refer to DRIVER SIDE REAR THORAX AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR THORAX AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Component location: behind the sill panel strip
- Removing and installing. Refer to DRIVER SIDE REAR THORAX AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR THORAX AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- Safety Precautions. Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and installing. Refer to DRIVER THORAX AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER THORAX AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Bolt
- 9 Nm
- Driver Front Airbag Crash Sensor -G283-
- Component location: on the lock carrier
- Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
