Overview - Rear Thorax Airbag

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

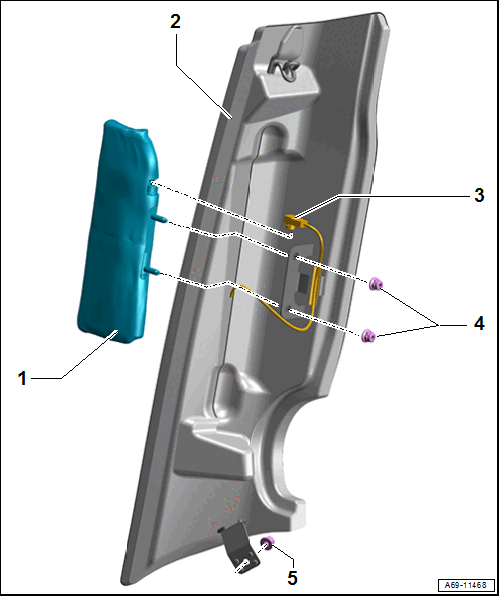

Fig 1: Exploded View Of Rear Thorax Airbag

Courtesy of AUDI OF AMERICA, LLC

Rear Thorax Airbag
- With
  - Driver Side Rear Thorax Airbag Igniter -N201-
  - Passenger Side Rear Thorax Airbag Igniter -N202-
- Removing and Installing. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Side Cushion
- Removing and Installing. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Connector
- For
  - Driver Side Rear Thorax Airbag Igniter -N201-
  - Passenger Side Rear Thorax Airbag Igniter -N202-
Nuts
- Replace after removing
- 6 Nm
Nut
- Replace after removing
- Tightening specification. Refer to OVERVIEW - COVER AND CUSHION .
