Outer Rear Three-Point Seat Belt, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .

-- Switch off the ignition and place the ignition key outside of the vehicle and wait 10 seconds before working on the airbag system.

-- Remove the C-pillar lower trim. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Sedan: Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

-- Sportback: Remove the right side seat belt: Cellular Telephone Amplifier -R86-. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the belt end fitting -2-.

-- If installed: remove the noise insulation.

Courtesy of AUDI OF AMERICA, LLC

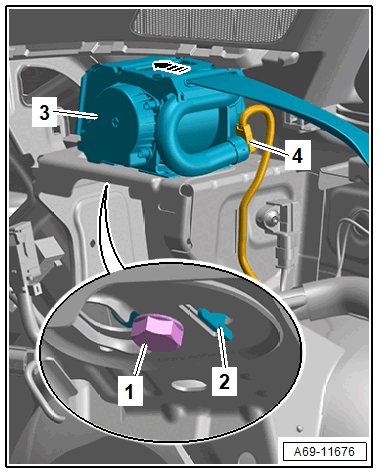

-- Remove the bolt -1-.

-- Push the three-point seat belt -3- slightly rearward in the direction of -arrow- and disengage the anti-twist mechanism -2- from the mount.

-- Disconnect the connector -4-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Pyrotechnical components can deploy unintentionally.

Risk of injury.

- Discharge the static electricity: quickly touch the door striker.

-- Release the connector lock -2- for the connector -1- with a small flat-head screwdriver in the direction of -arrow-.

-- Disconnect the connector and remove the three-point seat belt.
