Rear Seat Belt Latch, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

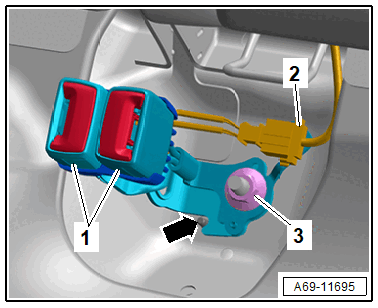

-- Equipped on some models: disconnect the connector -2- for the seat belt switch.

GWWA69-11695Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -3-.

-- Remove the seat belt latches -1-.
