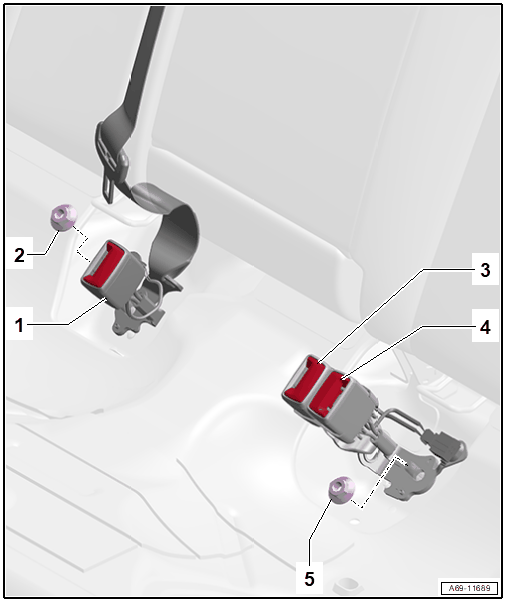

Overview - Rear Seat Belt Latch
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Right Seat Belt Latch, Belt End Fitting
- Equipment version with Passenger Side Second Row Seat Belt Switch -F392-
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replace if the belt tensioner has deployed when the belt is buckled
- Align with the direction of travel when installing, it must engage in the anti-twist mechanism
- Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Tightening specifications. Refer to -Item : Nut.
- Center Seat Belt Latch
- Equipment version with Center Second Row Seat Belt Switch -F391-
- Available only with -Item : Left Seat Belt Latch
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replace if the belt tensioner has deployed when the belt is buckled
- Align with the direction of travel when installing, it must engage in the anti-twist mechanism
- Left Seat Belt Latch
- Equipment version with Driver Side Second Row Seat Belt Switch -F390-
- Available only with -Item : Center Seat Belt Latch
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replace if the belt tensioner has deployed when the belt is buckled
- Align with the direction of travel when installing, it must engage in the anti-twist mechanism
- Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 45 Nm
