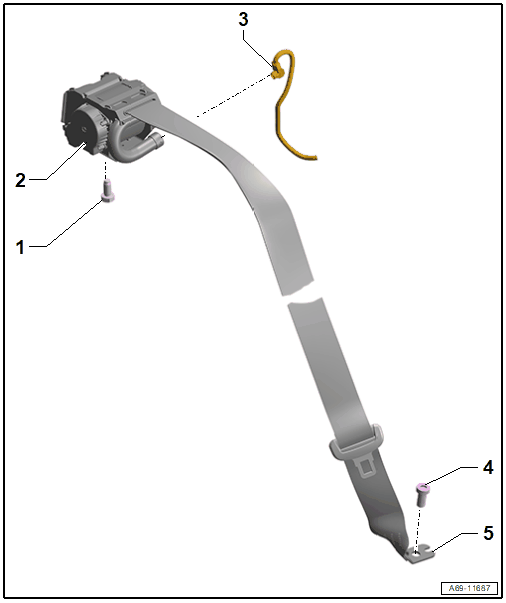

Overview - Outer Rear Three-Point Seat Belt
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 45 Nm
- Automatic Belt Retractor
- With
- Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Removing and Installing. Refer to OUTER REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- With
- Connector
- For
- Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- For
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 45 Nm
- Belt End Fitting
- Removing and Installing. Refer to OUTER REAR BELT END FITTING, REMOVING AND INSTALLING .
