Overview - Center Rear Three-Point Seat Belt

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

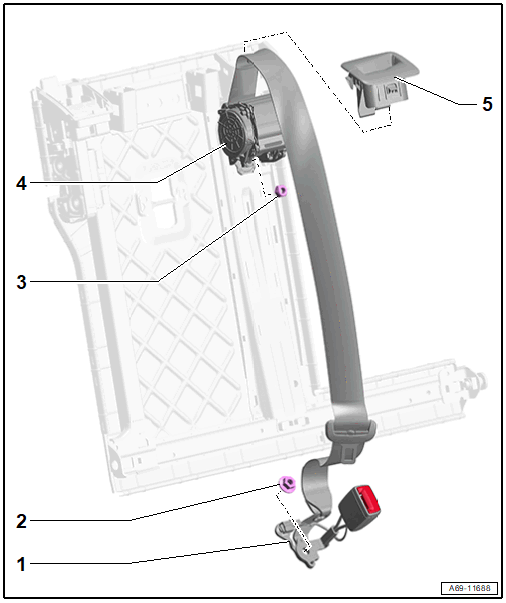

GWWA69-11688Courtesy of AUDI OF AMERICA, LLC
  1. Seat Belt Latch, Right Belt End Fitting
  2. Nut
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • 45 Nm
  3. Nut
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • 40 Nm
  4. Automatic Belt Retractor
  5. Seat Belt Guide
