Overview - Knee Airbag

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

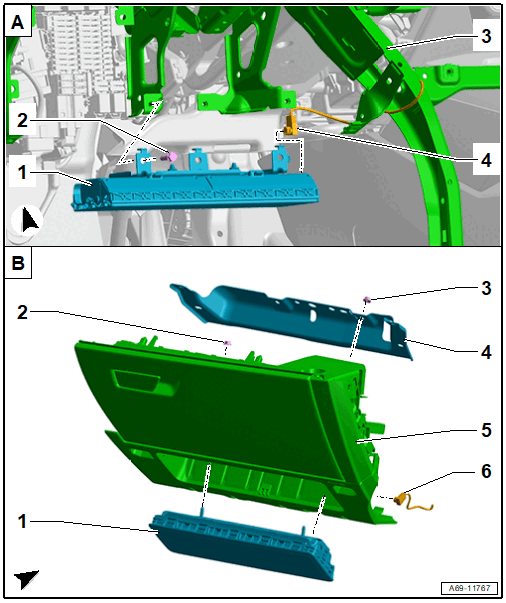

A -
Driver Side Knee Airbag
1 -
Driver Side Knee Airbag
- Removing and Installing. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, DRIVER SIDE .
2 -
Bolt
- Quantity: 3
- Replace after removing
- 8 Nm
3 -
Crossmember
- For the instrument panel
4 -
Connector
- For the Driver Knee Airbag Igniter -N295-
B -
Front Passenger Knee Airbag
1 -
Front Passenger Knee Airbag
- Removing and Installing. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
2 -
Nut
- Quantity: 2
- Replace after removing
- 7 Nm
3 -
Nut
- Quantity: 2
- Replace after removing
- 7 Nm
4 -
Bracket
- For the knee airbag
- Removing and Installing. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
5 -
Glove Compartment
6 -
Connector
- For the Front Passenger Knee Airbag Igniter -N296-
