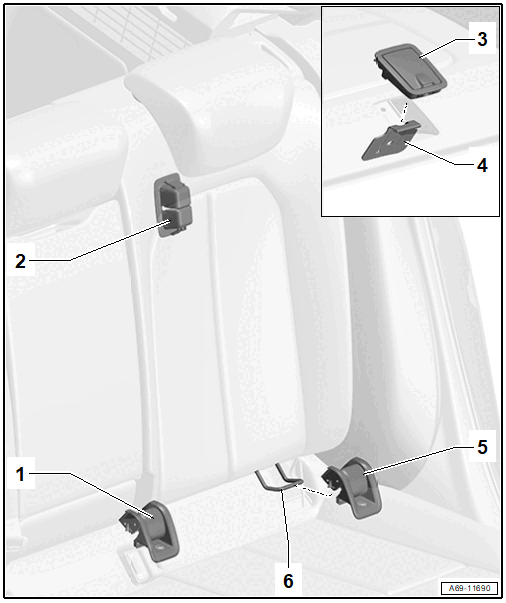

Overview - Rear Child Seat Anchors
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Inner Guide
- For the lower child seat anchor
- Secured at the tab at the seat cover
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
- Must be secure on the anchor
- Cover, Sportback
- For the child seat anchor in the rear seat backrest
- Depending on vehicle equipment quantity of 2 or 3
- Removing and Installing. Refer to CHILD SEAT ANCHOR COVER IN REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Engage in the anchor and press on it until it engages audibly
- Can only be pushed onto the backrest in one position
- Sedan Cover
- For the child seat anchors in the rear shelf
- Depending on vehicle equipment quantity of 2 or 3
- Removing and Installing. Refer to CHILD SEAT ANCHOR COVER IN REAR SHELF, REMOVING AND INSTALLING .
- Sedan Rear Shelf Child Seat Anchors
- Depending on vehicle equipment quantity of 2 or 3
- Welded with the rear panel
- Outer Guide
- For the lower child seat anchor
- Secured at the tab at the seat cover
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
- Must be secure on the anchor
- Lower Child Seat Anchor
- Quantity: 4
- Welded to the vehicle floor
