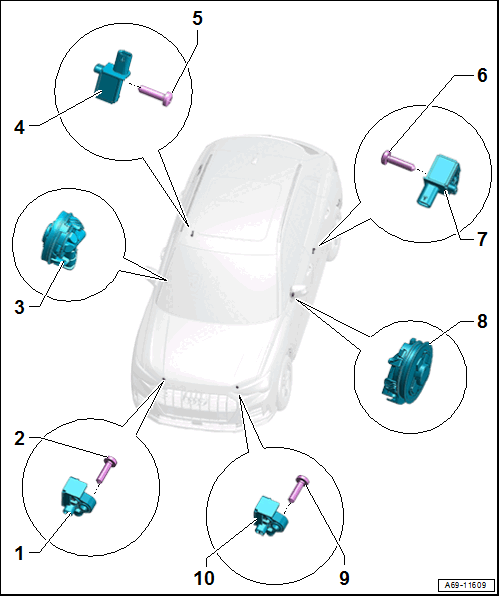

Component Location Overview - Airbag Crash Sensors
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Passenger Side Front Airbag Crash Sensor -G284-
- Component location: right side of lock carrier
- Removing and Installing. Refer to FRONT AIRBAG CRASH SENSOR, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- Safety Precautions. Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- /Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Component location: behind the C-pillar lower trim panel
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- /Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Component location: behind the C-pillar lower trim panel
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- /Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- Safety Precautions. Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- /Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Bolt
- 9 Nm
- Driver Front Airbag Crash Sensor -G283-
- Component location: left side of lock carrier
- Removing and Installing. Refer to FRONT AIRBAG CRASH SENSOR, REMOVING AND INSTALLING .
