Rear Lid Tail Lamps, Removing And Installing, AVANT: Removing

WARNING: This page is about a different car, the 2024 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the light switch to position "0".

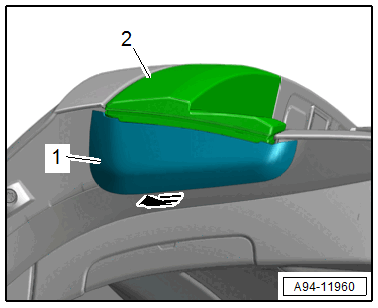

-- Remove the cover -1- from the tail lamp -2- -arrow-.

-- Pry off the cover -1- using the Trim Removal Wedge:3409 -arrow-.

Courtesy of AUDI OF AMERICA, LLC

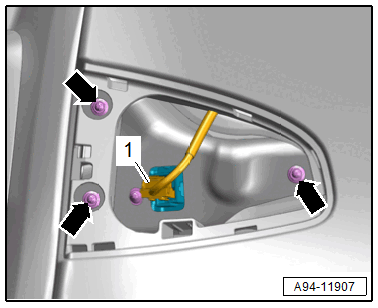

-- Disconnect the connector -1- by sliding the retainer toward the rear and pressing the release down.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows-.

-- Remove the tail lamp.
