Rear Lid Tail Lamp, Removing And Installing, Sedan: Removing
WARNING: This page is about a different car, the 2024 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Turn the light switch to position "0".

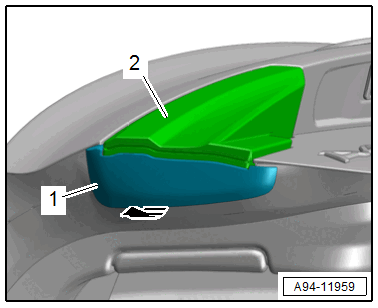

-- Remove the cover -1- from the tail lamp -2- -arrow-.

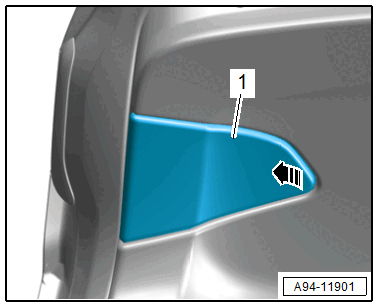

-- Release the cover -1- from the retainer -arrow- and fold aside.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Disconnect the connector -1-.
 Courtesy of AUDI OF AMERICA, LLC
|

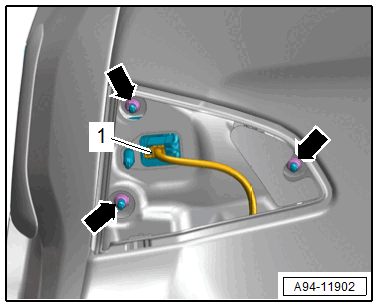

-- Remove the nuts -arrows-.
-- Remove the tail lamp.
