Overview - Rear Parking Aid

WARNING: This page is about a different car, the 2024 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

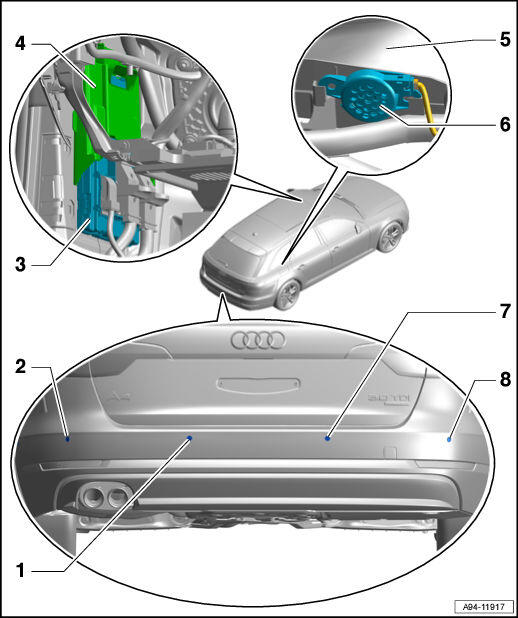

Fig 1: Rear Parking Aid Overview

Courtesy of AUDI OF AMERICA, LLC

Left Rear Center Parking Aid Sensor -G204-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Left Rear Parking Aid Sensor -G203-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
Bracket
- For vehicle electrical system control module
Seat Belt Guide
- Right rear parking aid sensor
Rear Parking Aid Warning Buzzer -H15-
- Discontinued as of MY 2019 and the Front Parking Aid Warning Buzzer -H22- is exclusively installed on all parking aid versions (7X1, 7X2, 7X5).
- Removing and installing. Refer to Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING .
Right Rear Center Parking Aid Sensor -G205-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Right Rear Parking Aid Sensor -G206-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
