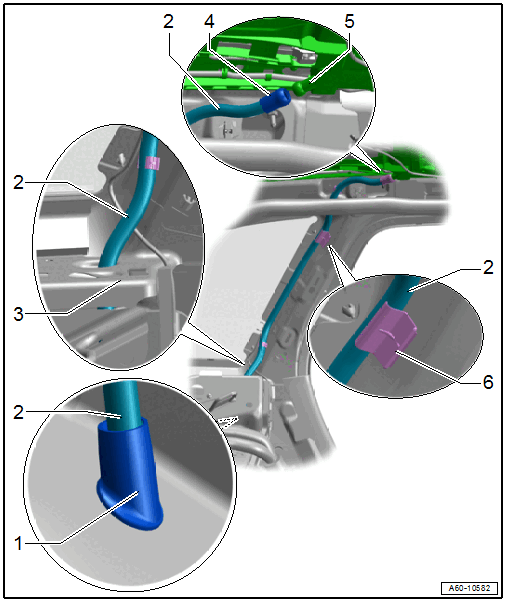

Overview - Rear Water Drain Hoses, A4 AVANT
WARNING: This page is about a different car, the 2024 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Push all the way into the body using a soap solution
- Rear Water Drain Hose
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to REAR WATER DRAIN HOSES, REMOVING AND INSTALLING, A4 .
- Longitudinal Reinforcement
- With cut-out for the water drain hose
- Coupling Piece
- Attach to the connection
- Connection
- On the sunroof frame
- Mount
- For the water drain hose
