Wind Deflector, Removing And Installing, A4 AVANT: Removing
WARNING: This page is about a different car, the 2024 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front glass panel completely toward the rear.

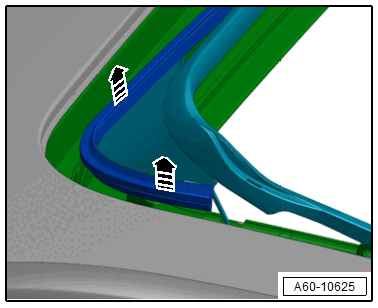

-- Starting at the side, disengage the lower molding on the wind deflector net from the sliding sunroof frame -arrow-.

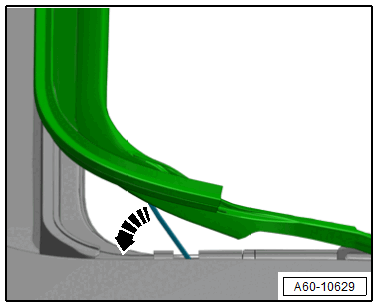

-- Push the wind deflector spring on the left and right sides downward -arrow- and disengage it from the wind deflector.

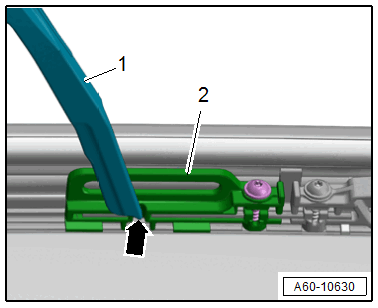

-- Position the wind deflector frame -1- on the left and right sides in the bearing -2- so that it is above the cut-out -arrow-.
-- Pivot the frame in this position upward and remove it sideways from the bearing.
