Glass Panel, Adjusting, A4 AVANT And Market-Specific Version

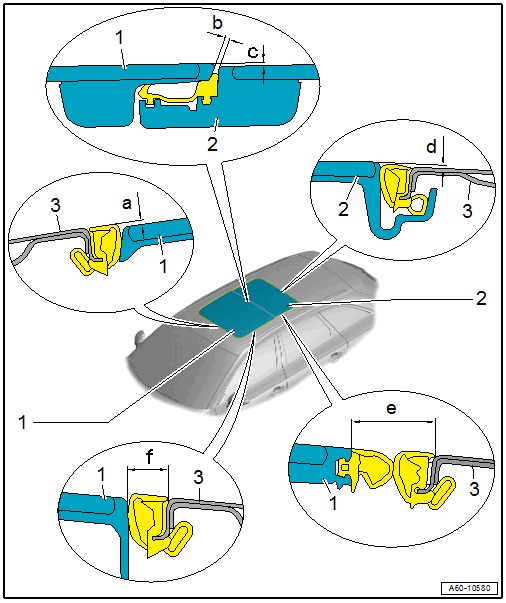

Adjustment Dimensions

Courtesy of AUDI OF AMERICA, LLC

1. Front Glass Panel
   • Dimension -a- = 1.9 ± 1.1 mm
   • Dimension -b- = 1.2 ± 0.5 mm
   • Dimension -c- = 1.0 ± 0.5 mm
   • Dimension -f- = 10 ± 1.2 mm
2. Rear Glass Panel
   • Dimension -d- = 0.3 ^{+ 0.7}_{- 0.3} mm
   • Dimension -e- = 21.9 ± 1.2 mm
3. Roof

Height Adjustment

• Only adjust the front glass panel at the front edge and the rear glass panel at the rear edge.
• To achieve the best possible exterior optical characteristics, make sure that the adjustment on left and right sides is performed as evenly (symmetrically) as possible.

-- Check the adjustment of the front -1- and rear -2- glass panels with a depth gauge, for example.

Fig 1: Adjusting Rear Glass Panel According To Illustration

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = 1.9 ± 1.1 mm
• Dimension -b- = 1.0 ± 0.5 mm
• Dimension -c- = 0.3 ^{+ 0.7}_{- 0.3} mm

-- Remove the left and right inner seal on the side.

-- To adjust the front glass panel -1-, reach through the openings in the side rubber trim on the glass panel to loosen both of the front screws -left arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Adjust the glass panel and tighten the screws.

-- To adjust the rear glass panel -1-, loosen the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Adjust the glass panel and tighten the screws.

-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .

Tightening Specifications

• Refer to appropriate Repair Information
• Refer to OVERVIEW - SLIDING SUNROOF, A4 AVANT
