Bumper Cover Trim Molding, Removing And Installing, A4 Lines, A5 Lines And A4 ALLROAD From Product Improvement: Removing
WARNING: This page is about a different car, the 2024 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the mount for the tail pipe trim. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .

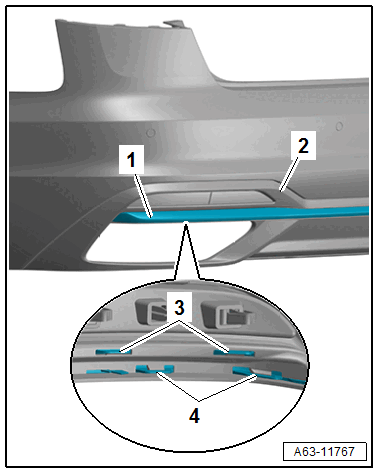

-- Release the catches -3 and 4- and remove the trim molding -1- from the bumper cover lower section -2-.
