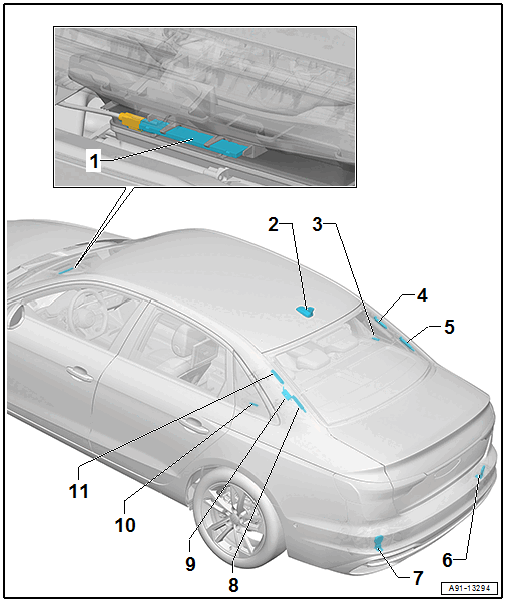

Component Location Overview - Antenna Systems, Sedan, From Product Improvement
WARNING: This page is about a different car, the 2024 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.
- Emergency Call Module Antenna 3 -R323-
- Only for IV1 through IV8, or JE0 through JE4
- Removing and Installing. Refer to Emergency Call Module Antenna 3 -R323-, REMOVING AND INSTALLING .
- Roof Antenna -R216-
- Antenna assignment depends on equipment
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Wireless Data Transmission Antenna -R336-
- Only for 9ZE/9ZV/9ZX
- Removing and Installing. Refer to WIRELESS DATA TRANSMISSION ANTENNA - R336- / -R366-, REMOVING AND INSTALLING .
- Antenna Amplifier -R24-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to Antenna Amplifier -R24-, REMOVING AND INSTALLING, SEDAN .
- TV Antenna Amplifier 2 -R83-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to the appropriate service information .
- LTE Antenna 3 -R330-
- Only on 9ZE
- Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, SEDAN/AVANT/ALLROAD, FROM PRODUCT IMPROVEMENT .
- Emergency Call Module Antenna -R263-
- Only for IV1 through IV8, or JE0 through JE4
- Removing and Installing. Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, SEDAN/AVANT/ALLROAD, FROM PRODUCT IMPROVEMENT .
- TV Antenna Amplifier 3 -R84-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to the appropriate service information .
- Windshield Antenna Suppression Filter -C18-
- Nut tightening specification: 9 Nm
- Removing and Installing. Refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING, SEDAN .
- Wireless Data Transmission Antenna 2 -R366-
- Only for 9ZE/9ZV/9ZX
- Removing and Installing. Refer to WIRELESS DATA TRANSMISSION ANTENNA - R336- / -R366-, REMOVING AND INSTALLING .
- Antenna Amplifier 2 -R111-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING, SEDAN .
