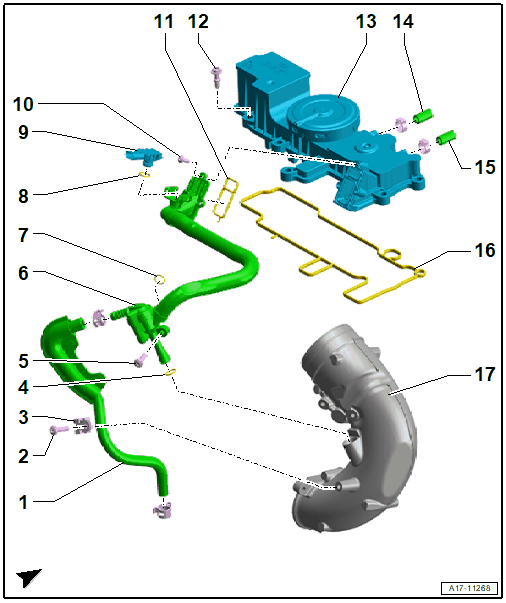

Overview - Crankcase Ventilation, North AMERICAN Market-Specific Version
WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.
- Hose
- For the crankcase ventilation
- Bolt
- Tightening Specification. Refer to Part 2 .
- Clamp
- O-Ring
- Replace if damaged or leaking, if not available separately, then replace entire component
- Bolt
- 8 Nm
- Venturi Injector
- Seal
- Replace if damaged or leaking, if not available separately, then replace entire component
- O-Ring
- Replace if damaged or leaking, if not available separately, then replace entire component
- Tank Ventilation Pressure Sensor 1 -G950-
- Equipped on some models
- Removing and Installing. Refer to Tank Ventilation Pressure Sensor 1 -G950-, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Seal
- Replace if damaged or leaking, if not available separately, then replace entire component
- Bolt
- Tightening Specifications and Sequence. Refer to Figure.
- Crankcase Ventilation Module
- Removing and Installing. Refer to CRANKCASE VENTILATION MODULE, REMOVING AND INSTALLING .
- Hose
- To the EVAP Canister
- Hose
- For the crankcase ventilation
- Seal
- Replace after removing
- Air Duct Pipe
