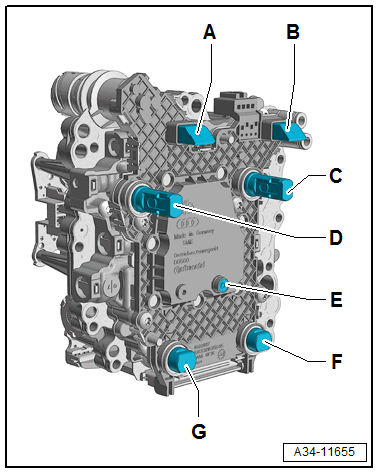

Component Location Overview - MECHATRONIC Sensor
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- A - Gear Position Distance Sensor 4 -G490- for Gears R and 4
- B - Gear Position Distance Sensor 1 -G487- for Gears 5 and 1
- C - Transmission Input Speed Sensor 2 -G612-
- D - Transmission Input Speed Sensor 1 -G632-
- E - Transmission Fluid Temperature Sensor -G93-
- F - Gear Position Distance Sensor 2 -G488- for Gears 2 and 6
- G - Gear Position Distance Sensor 3 -G489- for Gears 3 and 7
