Right Seal, Replacing, AWD Vehicles

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit:SMN372500

Courtesy of AUDI OF AMERICA, LLC
Seal Installer - Flange Shaft:T10049

Courtesy of AUDI OF AMERICA, LLC
Puller - Crankshaft/Power Steering Seal:T20143

Courtesy of AUDI OF AMERICA, LLC
Sealing Grease. Refer to the Parts Information.

Procedure

-- Remove the bevel box. Refer to BEVEL BOX, REMOVING .

-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the transmission.

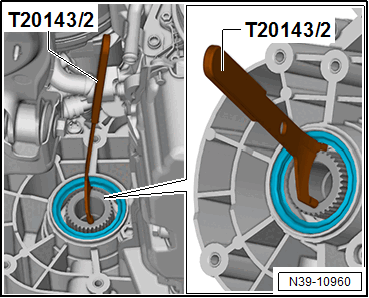

-- Pry out the seal on the DSG transmission using the Puller - Crankshaft/Power Steering Seal:T20143/1 or :T20143/2 .

Courtesy of AUDI OF AMERICA, LLC

-- Coat the outer circumference of the new seal with transmission fluid.

Courtesy of AUDI OF AMERICA, LLC

-- Fill the space between the sealing/dust lip halfway with sealing grease. Refer to the Parts Information.

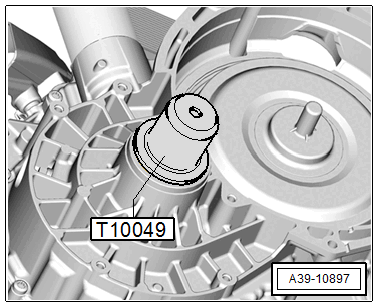

-- Carefully install the seal using the Seal Installer - Flange Shaft:T10049 until it stops.

Courtesy of AUDI OF AMERICA, LLC

-- Install the bevel box. Refer to BEVEL BOX, INSTALLING .
