Shift Mechanism, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Engage the parking brake.

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Remove the air filter housing. For gasoline, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING

-- Remove the bolts -arrows- and remove the connection -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the battery tray and the battery. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

-- Remove the ball socket -1- on the selector lever cable from the selector shaft lever using the Pry Lever:80-200 .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the operating cable by deforming it.

- Never sharply bend or kink the operating cable.

-- Remove the bolts -arrows-.

-- Remove the tunnel heat shield. Refer to FRONT HEAT SHIELD, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

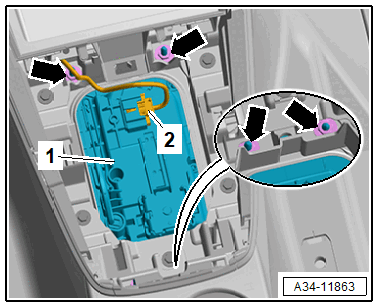

A second technician is required under the vehicle to remove the shift mechanism -1-.

-- Remove the nuts -arrows- in the vehicle interior.

-- Remove the selector mechanism downward.
