Shift Mechanism, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
If the selector mechanism is replaced:

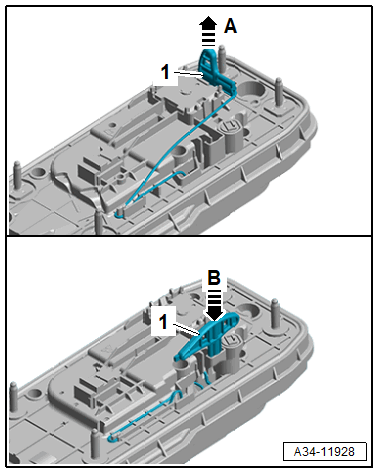

- When delivered, the handle for the emergency release -1- is attached and locked.
-- Remove the handle for the emergency release -1- -arrow A- and connect the bottom in the position shown -arrow B-.
- Route the cable neatly.
Continuation for all:
-- Adjust the selector lever cable. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
-- Check the selector mechanism. Refer to SHIFT MECHANISM, CHECKING .
-- Install the air filter housing. For gasoline, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING
-- Install the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
