Emergency Release From P

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Connecting Pin:T10027A

Courtesy of AUDI OF AMERICA, LLC

Procedure

-- Engage the parking brake.

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- If equipped, remove the noise insulation from the shift mechanism.

Tip

If the Connecting Pin:T10027A is not installed, the parking lock will be permanently disengaged after pulling the T-handle. It cannot be re-engaged mechanically.
It is then only possible to engage the parking lock electronically by pressing the "P" button.

Emergency Release, Activating

Courtesy of AUDI OF AMERICA, LLC

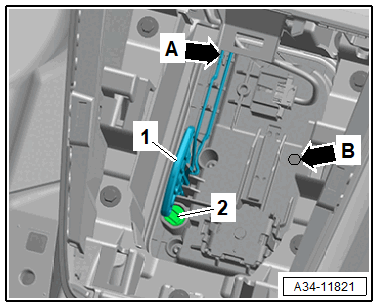

-- Insert the Connecting Pin:T10027A into the opening -arrow B-.

-- Press the foot brake.

-- Pull the T-handle -1- all the way upward and hold it in this position.

-- Press the locking button -2- downward.

The button must stay in the pressed position when releasing the T-handle. The parking lock is now permanently disengaged.

Tip

If the parking lock should be mechanically re-engaged, the Connecting Pin:T10027A must remain installed.

Emergency Release, Deactivating

Courtesy of AUDI OF AMERICA, LLC

-- Pull the T-handle -1- upward until the locking button -2- springs back into the upper position.

-- Slowly release the T-handle.

The lock will audibly return to its starting position at the same time. The parking lock is re-engaged.

-- Bring the T-handle -1- back into its starting position by placing the cable around the ridge -arrow A-.

-- Remove the Connecting Pin:T10027A .

Further installation is performed in reverse order of the removal.
