Securing On Engine And Transmission Holder
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Holding Plate:VW 309A
- or Holding Plate:VW 309 A
- Transmission Support:VW 353
- Engine and Gearbox Bracket:VAS 6095A
Transmission, Securing to Engine/Transmission Holder

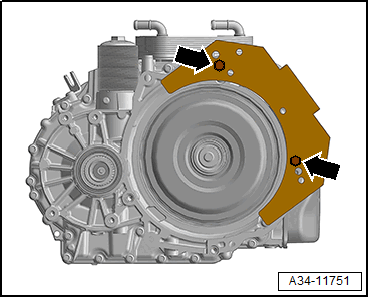

-- Mount the transmission to the Transmission Support:VW 353 and place it, with the Holding Plate:VW 309 in the Engine and Gearbox Bracket VAS 6095A:VAS 6095 .
Tip
Fluid leakage when turning the transmission.
- Vents for the transmission housing must be closed when turning a filled transmission on the engine and transmission holder with the bleeder downward.
