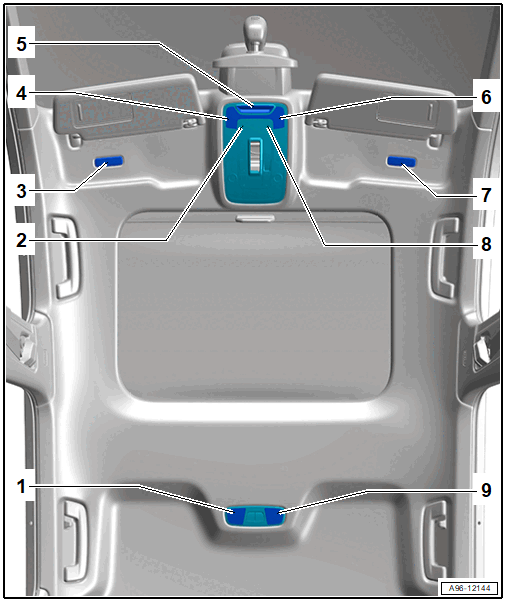

Component Location Overview - Roof Trim Panel Lamps
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Right Rear Reading Lamp -W12-
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Right Ambient Lighting
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Front Passenger Vanity Mirror Lamp -W14-
- RHD: Driver Vanity Mirror Lamp -W20-
- The vanity mirror illumination must be replaced if one of the LEDs is faulty
- Removing and Installing. Refer to Driver Vanity Mirror Lamp -W20- /Front Passenger Vanity Mirror Lamp -W14-, REMOVING AND INSTALLING .
- Right Front Reading Lamp -W66-
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- The front roof module must be replaced if an indicator lamp is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Front Reading Lamp -W65-
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Driver Vanity Mirror Lamp -W20-
- RHD: Front Passenger Vanity Mirror Lamp -W14-
- The vanity mirror illumination must be replaced if one of the LEDs is faulty
- Removing and Installing. Refer to Driver Vanity Mirror Lamp -W20- /Front Passenger Vanity Mirror Lamp -W14-, REMOVING AND INSTALLING .
- Left Ambient Lighting
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Rear Reading Lamp -W11-
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
