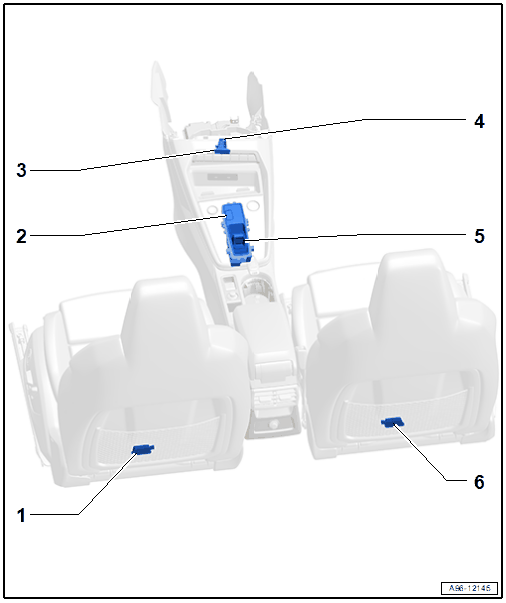

Component Location Overview - Lamps On The Center Console, In The Seats
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Left Rear Footwell Lamp -W45-
- Removing and Installing. Refer to Left Rear Footwell Lamp -W45- / Right Rear Footwell Lamp -W46-, REMOVING AND INSTALLING .
- Selector Lever Transmission Range Display -Y5-
- Integrated into the display unit / selector mechanism control. Cannot be replaced separately
- Replacing if the display unit / selector mechanism control is damaged. Refer to OVERVIEW - SHIFT MECHANISM .
- Fiber-Optic Cable for Front Center Console Lamp
- Removing and Installing. Refer to CENTER CONSOLE ILLUMINATION BULB, REMOVING AND INSTALLING .
- Center Console Illumination Bulb -L150- (QQ1) / Front Center Console Ambient Lighting Bulb 1 -L193- (QQ2)
- Removing and Installing. Refer to CENTER CONSOLE ILLUMINATION BULB, REMOVING AND INSTALLING .
- Selector Mechanism Control
- Right Rear Footwell Lamp -W46-
- Removing and Installing. Refer to Left Rear Footwell Lamp -W45- / Right Rear Footwell Lamp -W46-, REMOVING AND INSTALLING .
