Component Location Overview - Instrument Panel Lamps
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

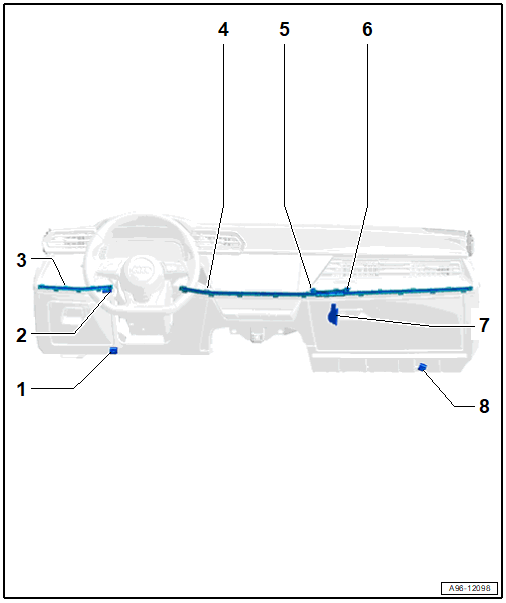

- Left Footwell Lamp -W9-
- Removing and Installing. Refer to Left Footwell Lamp -W9- /Right Footwell Lamp -W10-, REMOVING AND INSTALLING .
- Instrument Panel Contour Illumination Lamp 1 -L243-
- Removing and Installing. Refer to INSTRUMENT PANEL AMBIENT LIGHTING LAMP, REMOVING AND INSTALLING .
- Fiber-Optic Cable
- For the Instrument Panel Contour Illumination Lamp 1 -L243-
- Integrated into the instrument panel decorative trim. Cannot be replaced separately
- Replace if the instrument panel decorative trim is damaged. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
- Fiber-Optic Cable
- For Instrument Panel Contour Illumination Lamp 2 -L244-, and Instrument Panel Contour Illumination Lamp 3 -L245-
- Integrated into the instrument panel decorative trim. Cannot be replaced separately
- Replace if the instrument panel decorative trim is damaged. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
- Instrument Panel Contour Illumination Lamp 3 -L245-
- Removing and Installing. Refer to INSTRUMENT PANEL AMBIENT LIGHTING LAMP, REMOVING AND INSTALLING .
- Instrument Panel Contour Illumination Lamp 2 -L244-
- Removing and Installing. Refer to INSTRUMENT PANEL AMBIENT LIGHTING LAMP, REMOVING AND INSTALLING .
- Glove Compartment Lamp -W6-
- Removing and Installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
- Right Footwell Lamp -W10-
- Removing and Installing. Refer to Left Footwell Lamp -W9- /Right Footwell Lamp -W10-, REMOVING AND INSTALLING .
