Component Location Overview - Front Door Lamps

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

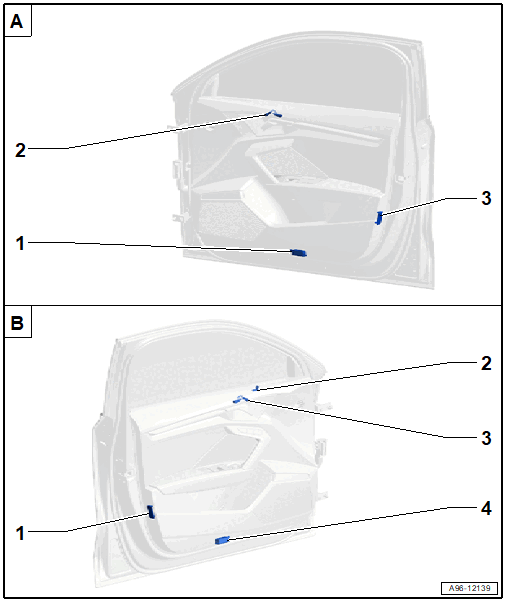

GWWA96-12139Courtesy of AUDI OF AMERICA, LLC
  1. A -  Right Front Door
  2. 1 -  Passenger Side Entry Lamp -W93-
  3. 2 -  Passenger Side Interior Door Handle Illumination Lamp -L220-
  4. 3 -  Left Right Door Warning Reflector
  5. B -  Left Front Door
  6. 1 -  Left Front Door Warning Reflector
  7. 2 -  Central Locking -Safe- Indicator Lamp -K133-
  8. 3 -  Driver Side Interior Door Handle Illumination Lamp -L219-
  9. 4 -  Driver Side Entry Lamp -W92-
