Center Console Illumination Bulb, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console cover. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
-- Remove Control Unit 1 for Driving and Convenience Functions -E791-. Refer to Control Unit 1 for Driving and Convenience Functions -E791-, REMOVING AND INSTALLING .

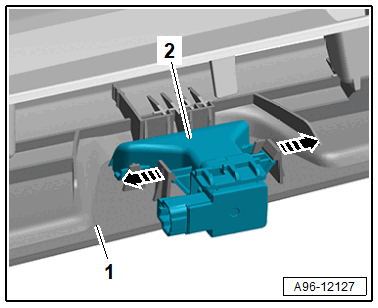

-- Release the catches -arrows- and remove the lamp -2- from the cover -1-.

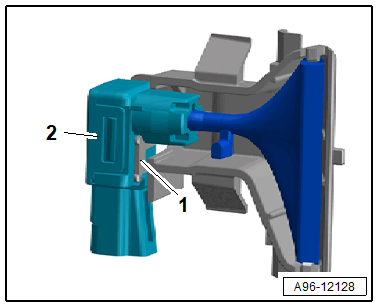

-- Slightly remove the lamp -2- from the mount -1-.

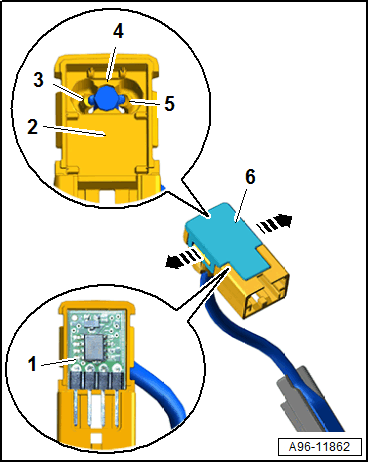

-- Release the retainers -arrows-, and remove the cover -6-.
-- Remove the circuit board -1-.
-- Release the retainers -3 and 5- and remove the housing -2- from the fiber-optic cable -4-.
