Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the license plate.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Equipment version: Remove the rearview camera. Refer to REARVIEW CAMERA -R189-, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

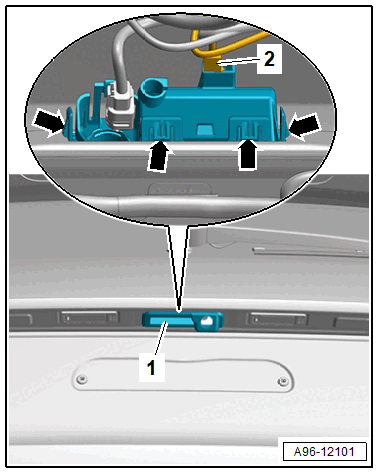

GWWA96-12101Courtesy of AUDI OF AMERICA, LLC

-- Open the side tabs -arrows- and remove the buttons -1- outward.
