Light Switch -E1-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the light switch off.

-- Remove the instrument panel trim on the driver side. Refer to OVERVIEW - INSTRUMENT PANEL .

-- Release the retainers -arrows-.

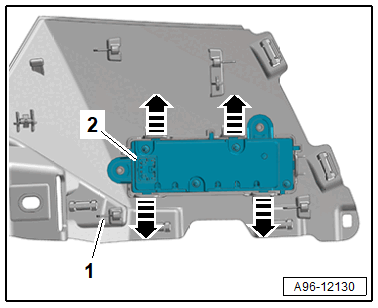

GWWA96-12130Courtesy of AUDI OF AMERICA, LLC

-- Remove the light switch -2- from the trim -1-.
