Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

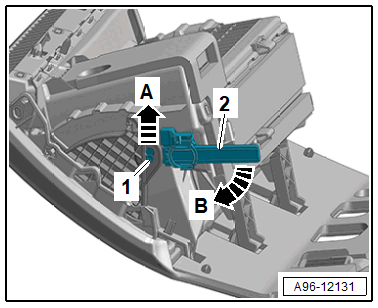

-- Remove the operating cable -1- from the locking mechanism -arrow A- and free up.

GWWA96-12131Courtesy of AUDI OF AMERICA, LLC

-- Release the switch -2- -arrow B- and remove.
