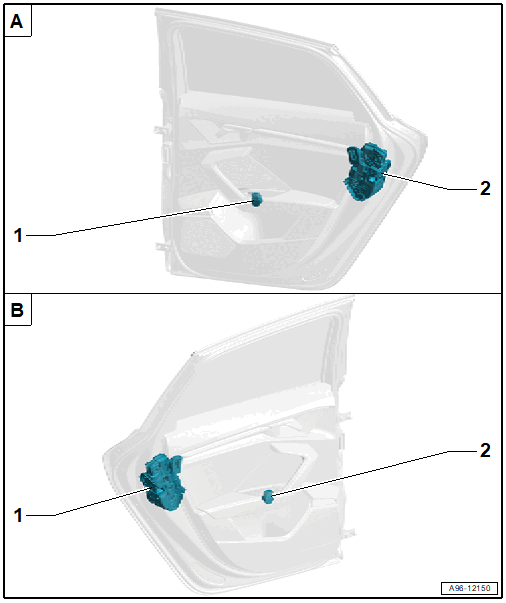

Component Location Overview - Controls In Rear Doors
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- A - Right Rear Door
- 1 -
Control Head in Passenger Side Rear Door -EX60-
- Removing and Installing. Refer to Control Head in Passenger Side Rear Door -EX60- /Control Head in Driver Side Rear Door -EX61-, REMOVING AND INSTALLING .
- 2 -
Passenger Side Rear Door Contact Switch -F506-
- Integrated in the door lock. Cannot be replaced separately
- Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- B - Left Rear Door
- 1 -
Control Head in Driver Side Rear Door -EX61-
- Removing and Installing. Refer to Control Head in Passenger Side Rear Door -EX60- /Control Head in Driver Side Rear Door -EX61-, REMOVING AND INSTALLING .
- 2 -
Driver Side Rear Door Contact Switch -F505-
- Integrated in the door lock. Cannot be replaced separately
- Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .
