12 V Socket 2 -U18-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

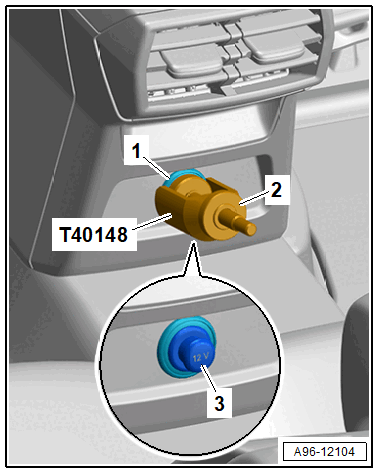

-- The release tabs -2- of the Cigarette Lighter Release Tool:T40148 must engage in the recesses of the 12 V Socket -3- -arrow-, for this the threaded rod -1- must be pushed down all the way.

-- Remove the blind cover -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the Cigarette Lighter Release Tool:T40148 all the way into the 12 V Socket -2-.

-- Turn the thumbwheel -1- at the Cigarette Lighter Release Tool:T40148 clockwise all the way to the end stop.

The plunger -2- is pulled up and the release tabs -1- are spreading in the Cigarette Lighter Release Tool:T40148 -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the 12 V Socket from the illumination ring using the Cigarette Lighter Release Tool:T40148 .

-- Guide the wire out through the mount.

-- Disconnect the connector.
