Overview - Interior Monitoring
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

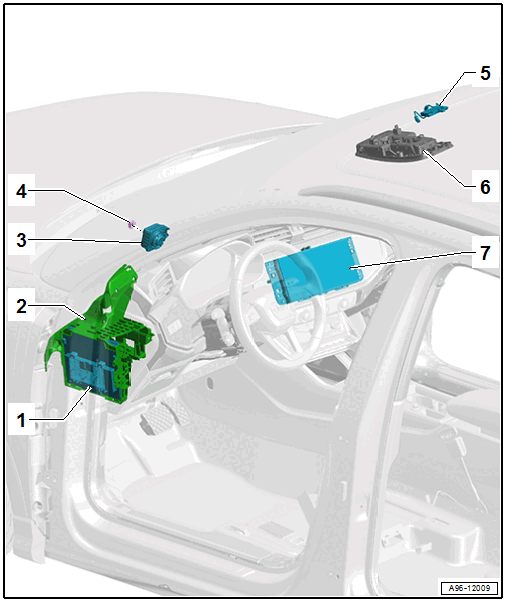

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Vehicle Electrical System Control Module -J519-
- Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
- Bracket
- For vehicle electrical system control module
- Alarm Horn -H12-
- Removing and Installing. Refer to Alarm Horn -H12-, REMOVING AND INSTALLING .
- Nut
- 5 Nm
- Anti-Theft Alarm System Sensor -G578-
- Removing and Installing. Refer to Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- with Roof Electronics Control Module -J528-
- Front Information Display Control Head -J685-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
