Alarm Horn -H12-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

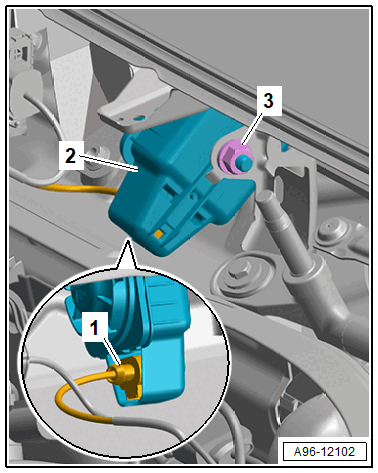

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
-- Remove the nut -3-.
-- Remove the alarm horn -2- from the bracket.
-- Pull the retainer and press the release to disconnect the connector -1-.
-- Remove the alarm horn.
